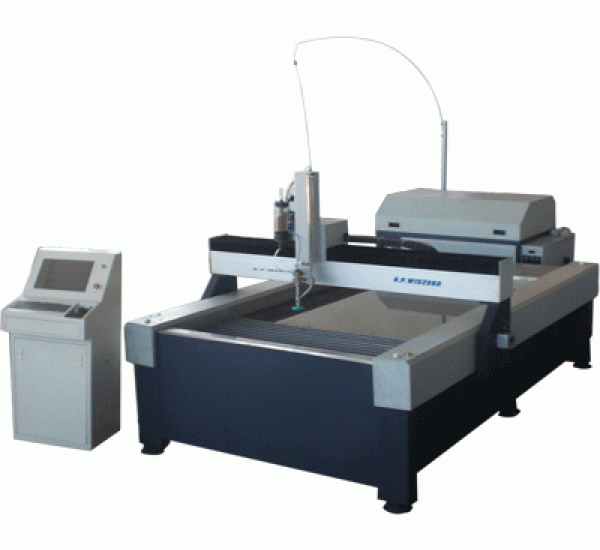

CNC Waterjet Cutting Machine

CNC Waterjet Cutting Machine

High pressure waterjet machine is made up of several critical key components, such as intensifier pump; cutting table with cutting head; CNC controller; auto abrasive delivery system.
2,200,000฿
Model: -
Company Information
Name : บริษัท ซี.ซี. ออโตพาร์ท จำกัด
Contact : ลัดดาวัลย์ ชดช้อย
Tel : Please login.
Main features of the machines
High pressure waterjet machine is made up of several critical key components, such as intensifier pump; cutting table with cutting head; CNC controller; auto abrasive delivery system.

Specification
1. Intensifier Pump A.P.W38037Z-078
Max working Pressure         380 MPa
Continuous working pressure 330 MPa
Max water discharge                 3.7 L/min
Max dia of orifce                         0.3 mm
Main motor power                 37 KW

2. Cutting Table
Bridge style cutting table with 5-axis cutting head
XYZ-axis travel                                 1,500x3,000x150 mm
Max moving speed for X/Y-axis 5,000 mm/min
Max moving speed for Z-axis         1,000 mm/min
Cutting Accuracy                                 +,- 0.1mm
Cutting head                                         5-axis

3. CNC Controller
Computer Numerical control
EVOC Industrial PC
15" LCD Monitor
Support DXF and NC code file
Resistance of the shock and electro magnetic
Matched file format DXF NC CNC G-code etc.
Software : Windows XP

4. Auto Abrasive Deliverly Parameter
Max. Inlet Air Pressure 0.6 MPa
Min. Inlet Air Pressure         0.2 MPa
Abrasive Capacity         225 Kg
Min. Inlet Air flow                 0.028m3/min
Operating Air flow         0.005m3/min
Features
Air valve to prevent jams and breakages Auto control with CNC auxiliary function
Self Sealing Slightly adjust the flow by hand
