Keysight clamp meters

Keysight clamp meters

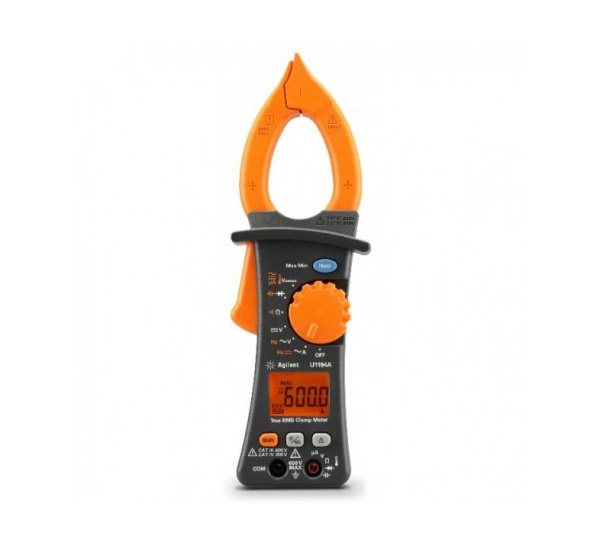

Keysight’s U1190 Series clamp meters are packed with a wealth of features to help you work more efficiently and more safely. Housed in robust cases, each model comes with an innovative wire separator that helps you isolate and measure individual wires in a bundle. The built-in LED flashlight illuminates your test area and Vsense performs non-contact voltage detection. The clamp meters are also certified with both CAT III 600 V and CAT IV 300 V ratings to cover wider measurement categories.
Call Seller for Quote
Model: U1194A
Company Information
Name : IRC Technologies Limited
Contact : Pornpailin Audleas
Tel : Please login.
Keysight U1190 Series clamp meters
Counts:  6,000
RMS method:  Average responding (U1191A & U1192A), True RMS (U1193A & U1194A)
DC voltage:  600 V (U1191A), 60 to 600 V (U1192A & U1193A & U1194A)
AC voltage:  600 V (U1191A), 60 to 600 V (U1192A & U1193A & U1194A)
DC A current:  60 to 600 A (U1194A only)
DC µA current:  60 to 600 µA (U1194A only)
AC current:  400 A (U1191A), 40 to 600 A (U1192A), 60 to 600 A (U1193A & U1194A)
AC µA current:  60 to 600 µA (U1194A only)
Resistance:  600 Ω to 6 kΩ (U1191A), 600 Ω to 60 kΩ (U1192A & U1193A & U1194A)
Capacitance:  N/A (U1191A), 600 µF to 6 mF (U1192A & U1193A & U1194A)
Operating temperature:   –10 to 50 °C, 0 to 80% RH
Battery (included):  Yes
Battery life:  200 hours
Warranty:  3 years

Features
– Unique wire separator to separate wires from a bundle
– Vsense to perform non-contact voltage detection
– Built-in LED flashlight to illuminate test area
– Current measurement up to 600 A
– Digital multimeter (DMM) with Resistance, Capacitance, DCV, ACV,  DCµA, ACμA, Continuity and Diode test measurements
– CAT III 600 V / CAT IV 300 V safety ratings
