Flowserve Pumps / Chemical Process Pumps

Durco Mark 3 Chemical Process Pumps. Heavy-duty casing with integral foot and multi-ribbed discharge flange. Reverse vane impeller standard; open impeller available. SealSentry seal chambers.

Call Seller for Quote

Model: Mark 3 ISO Standard

Company Information

Name : Thai Polymer Supply Co.,Ltd / บริษัท ไทยโพลิเมอร์ ซัพพลาย จำกัด

Contact : ฝ่ายขาย -

Tel : 0275048528

ติดต่อผู้ขาย

Description

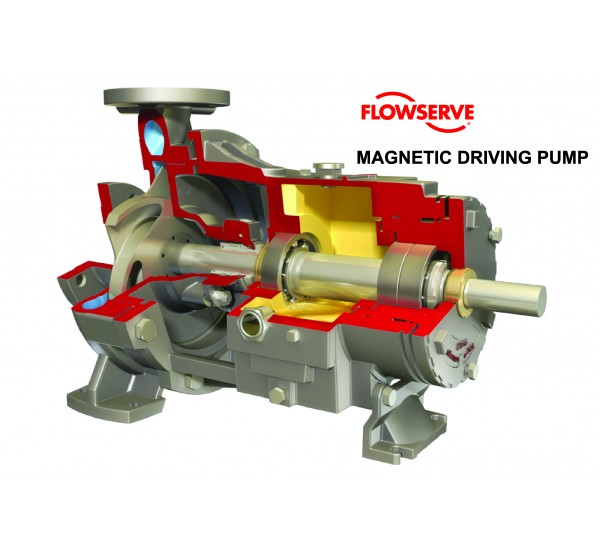

Durco Mark 3 Chemical Process Pumps

Standard ASME(ANSI) B73.1

Standards

• ISO 2858

• ISO 5199

Operating Parameters

• Flows to 1400 m3/h (6160 gpm)

• Heads to 220 m (720 ft)

• Pressures to 25 bar (365 psi)

• Temperatures from -80°C (-110°F) to 400°C (752°F)

Features

• Heavy-duty casing with integral foot and multi-ribbed discharge flange

• Reverse vane impeller standard; open impeller available

• SealSentry seal chambers

• Accepts multiple seal arrangements

• External micrometer impeller adjustment mechanism

• Standard non-contacting labyrinth seal

• Heavy-duty radial and thrust bearings

• Two-piece bearing housing

• Back pullout design

• IPS Beacon electronic vibration and temperature condition monitor

• Optional ISO 3A power end with lifetime warranty

• CE marked; ATEX compliant; GOST certificate available
