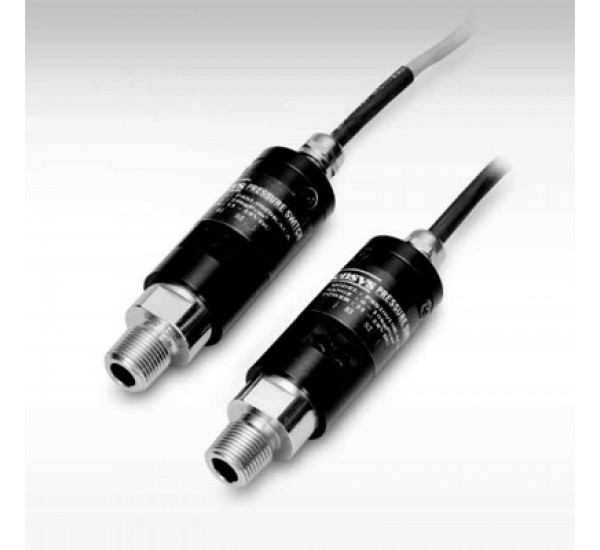

General Purpose Pressure Switch - Sensys PSS

PSS sensing element, has excellent temperature properties by adopting a self temperature compensation foil strain gauge. A diaphragm and a pressure port are composed as one body for the prevention of leakage. It can control the system without any controller due to the output of a 2-channel NPN open collector switch.   General Purpose Pressure Switch Model: PSS Features ▶ Electrical pressure switch with no mechanical moving part ▶ Fast response 1ms ▶ Measuring range 0~400MPa ▶ Two pressure setting points ▶ Self temperature compensation foil strain gauge ▶ Stainless steel media-wetted materials   Applications ▶ Process control ▶ Hydraulics & Pneumatic ▶ Compressor Control ▶ Chillers ▶ Refrigeration Equipment
