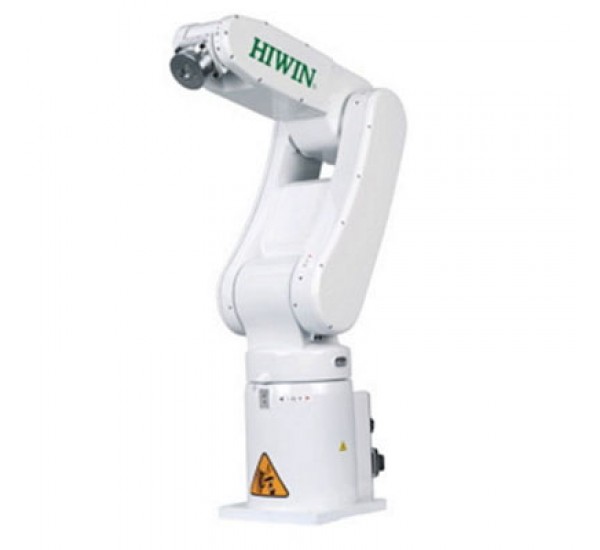

Articulated Robot RA605 Series

Features Articulated Robot RA605 Series

A compact and agile 6-axis jointed-arm robot for precise assembly, complex machining and workpiece manipulating.

Applications include: pick-and-place, handling, assembly, deburring, grinding and polishing.

Degrees of freedom 6
Nominal load capacity 5 kg
Motion Range Maximum reach radius 710 mm (Point P)
J1 ±165°
J2 +85° ~ -125°
J3 +185° ~ -55°
J4 ±190°
J5 ±115°
J6 ±360°
Position repeatability ±0.02mm
Cycle time* 0.5s
Weight
(kg)
40kg
Controller RCA605
Installation floor、ceiling、wall-mounted
